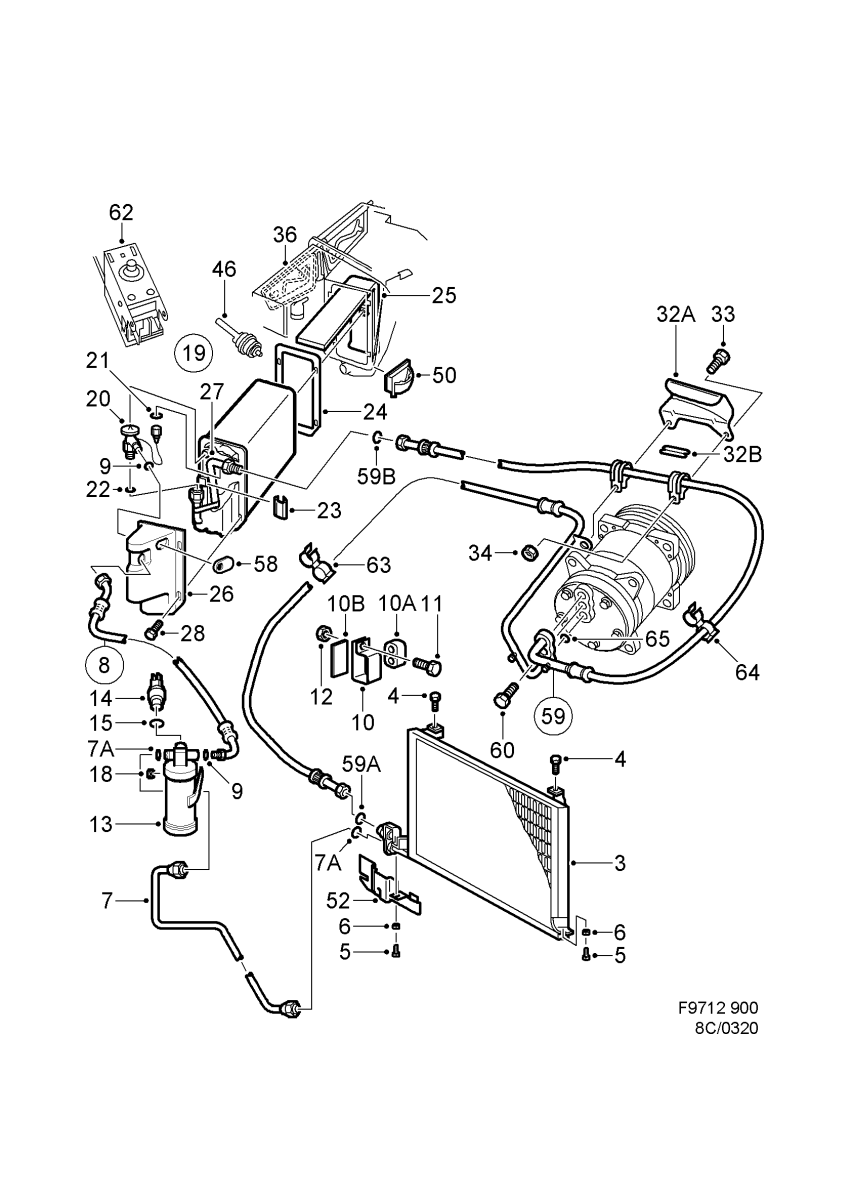

Teileliste Saab 900 Klimaanlage
3 Condenser - CANADA NLS 1 30501382 - -
3 Condenser NLS 1 4070918 - -
3 Condenser 1 4382396 - -
3 Condenser - CANADA 1 30544216 - -
4 Screw 2 8059578 - -
4 Screw - CANADA 2 30509535 - -
5 Screw - CANADA 2 30508706 - -
5 Screw 2 7922420 - -
5 Screw - CANADA 2 30509095 - -
5 Screw 2 7973001 - -
6 Washer - CANADA 2 30509454 - -
6 Washer 2 8029951 - -
7 Tube - CANADA 1 30525528 - -
7 Tube 1 9482035 - -
7A . O-ring NLS-USE 30541940 2 7972086 - -
7A . O-ring - CANADA NLS-USE 30541940 2 30509041 - -
8 Hose 1 9482027 - -
8 Hose - CANADA 1 30525527 - -
9 . O-ring - CANADA NLS-USE 30541940 2 30509041 - -
9 . O-ring NLS-USE 30541940 2 7972086 - -
10 Clamp - CANADA NLS 1 30525498 - -
10 Clamp NLS 1 9481458 - -
10A Spacer - CANADA 1 30525497 - -
10A Spacer 1 9481441 - -
10B Stay pad 1 9481664 - -
10B Stay pad - CANADA 1 30525508 - -
11 Screw NLS 1 8019911 - -
11 Screw - CANADA NLS 1 30509433 - -
12 Nut 1 8151227 - -
12 Nut - CANADA 1 30509749 - -
13 Reservoir NLS-USE 4383527 1 4070934 - -
13 Reservoir - CANADA NLS-USE 4383527 1 30501384 - -
14 . Switch 1 9480005 - -
14 . Switch - CANADA 1 30525439 - -
15 . O-ring NLS-USE 4073979 1 9473851 - -
15 . O-ring - CANADA NLS-USE 4073979 1 30525308 - -
18 Nut 1 8151235 - -
18 Nut - CANADA 1 30509750 - -
19 Evaporator NLS 1 9480955 - -
19 Evaporator - CANADA NLS 1 30525480 - -
20 . Valve - CANADA NLS 1 30525478 - -
20 . Valve NLS 1 9480914 - -
21 . O-ring - CANADA NLS 1 30509040 - -
21 . O-ring NLS 1 7972078 - -
22 . O-ring - CANADA NLS-USE 30541941 1 30509042 - -
22 . O-ring NLS-USE 30541941 1 7972094 - -
23 . Clamp - CANADA 1 30528611 - -
23 . Clamp 1 9629197 - -
24 . Seal - CANADA NLS 1 30525447 - -
24 . Seal NLS 1 9480245 - -
25 . Seal - CANADA NLS 1 30525415 - -
25 . Seal NLS 1 9479627 - -
26 . Cover - CANADA NLS 1 30525490 - -
26 . Cover NLS 1 9481185 - -
27 . Insulation - CANADA NLS 1 30524266 - -
27 . Insulation NLS 1 9401944 - -
28 Screw - CANADA NLS 4 30508709 - -
28 Screw NLS 4 7922461 - -
32A Brace - CANADA NLS 1 30525521 - -
32A Brace NLS 1 9481961 - -
32A Brace - CANADA NLS 1 30501407 - -
32A Brace NLS 1 4072492 - -
32B Protecting moulding - CANADA 1 30506192 - -
32B Protecting moulding 1 7535487 - -
33 Screw - CANADA 2 30509300 - -
33 Screw 2 7977499 - -
34 Lock nut - CANADA NLS-USE 92150265 2 30509556 - -
34 Lock nut NLS-USE 92150265 2 8073512 - -
36 Shutter Goto 08C - 140 - -
46 Vacuum servo Goto 08C - 230 - -
50 Clamp NLS, (RHD) 1 9479940 - -
50 Clamp - CANADA NLS, (RHD) 1 30525434 - -
52 Guard - CANADA NLS 1 30525542 - -
52 Guard NLS 1 9482399 - -
58 Grommet - CANADA NLS 1 30525491 - -
58 Grommet NLS 1 9481193 - -
59 Hose - CANADA I,TURBO 1 30525540 - -
59 Hose I,TURBO 1 9482365 - -
59A . O-ring - CANADA NLS-USE 30541941 1 30509042 - -
59A . O-ring NLS-USE 30541941 1 7972094 - -
59B . O-ring - CANADA NLS-USE 4318044 1 30509065 - -
59B . O-ring NLS-USE 4318044 1 7972482 - -
60 Screw - CANADA 1 30504677 - -
60 Screw 1 7399280 - -
62 Thermo switch Goto 03A - 800 - -
63 Clamp - CANADA 1 30504631 - -
63 Clamp 1 7398373 - -
64 Clamp - CANADA 1 30504640 - -
64 Clamp 1 7398530 - -
65 O-ring Goto 08C - 260 2 - -
 |
 |
 |
 |
 |
 |
 |
 |
